FILLER MIXER

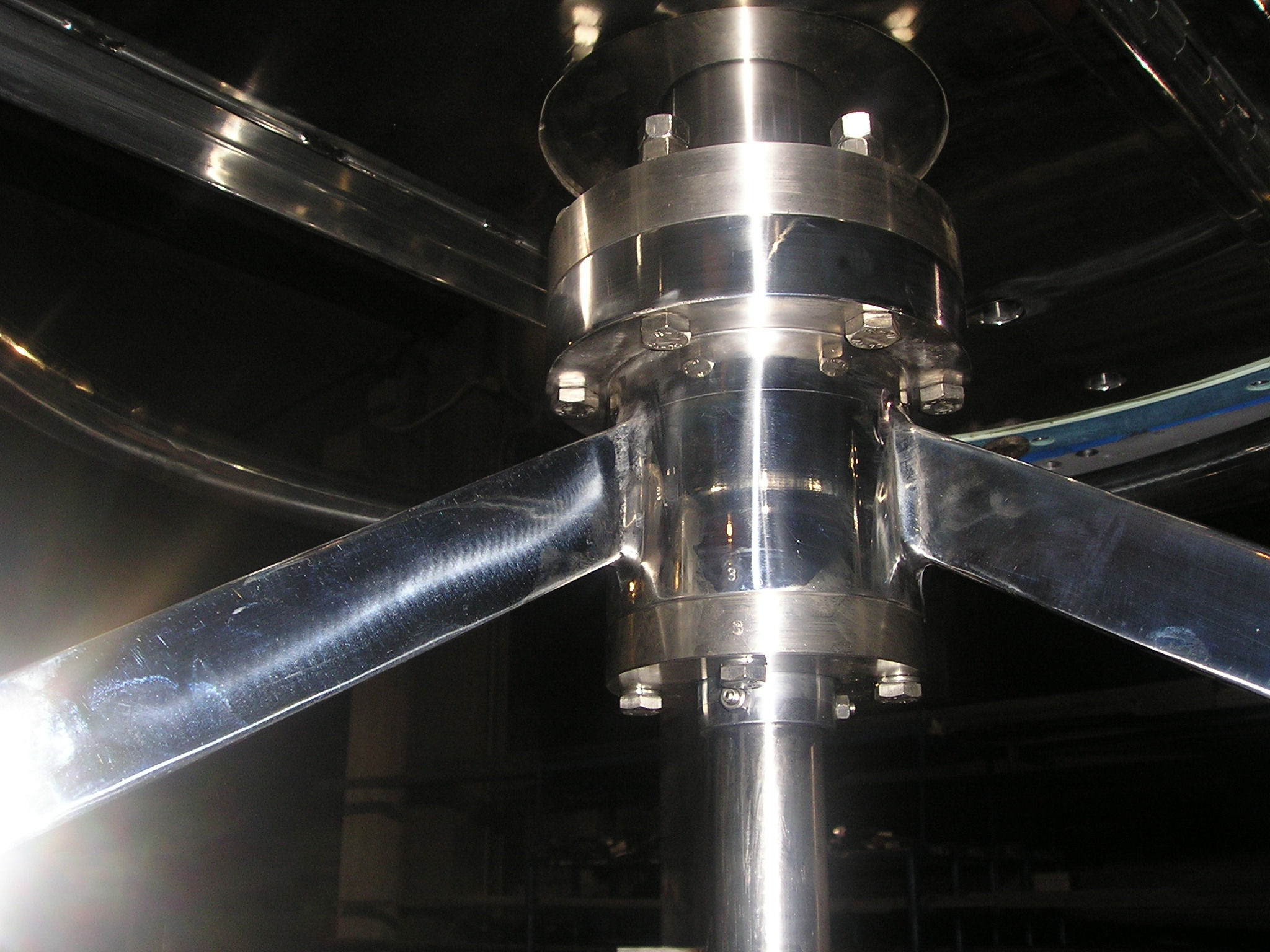

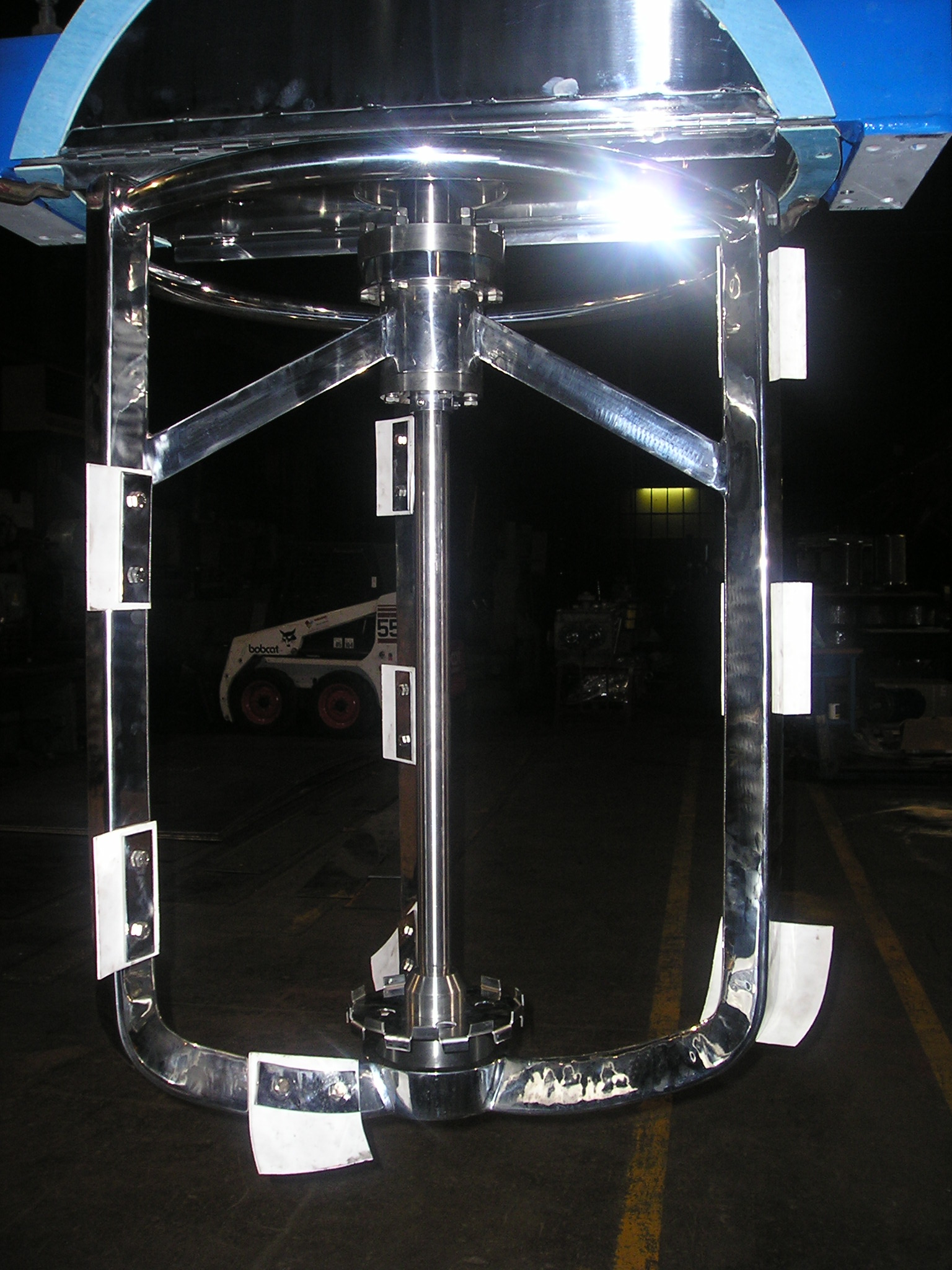

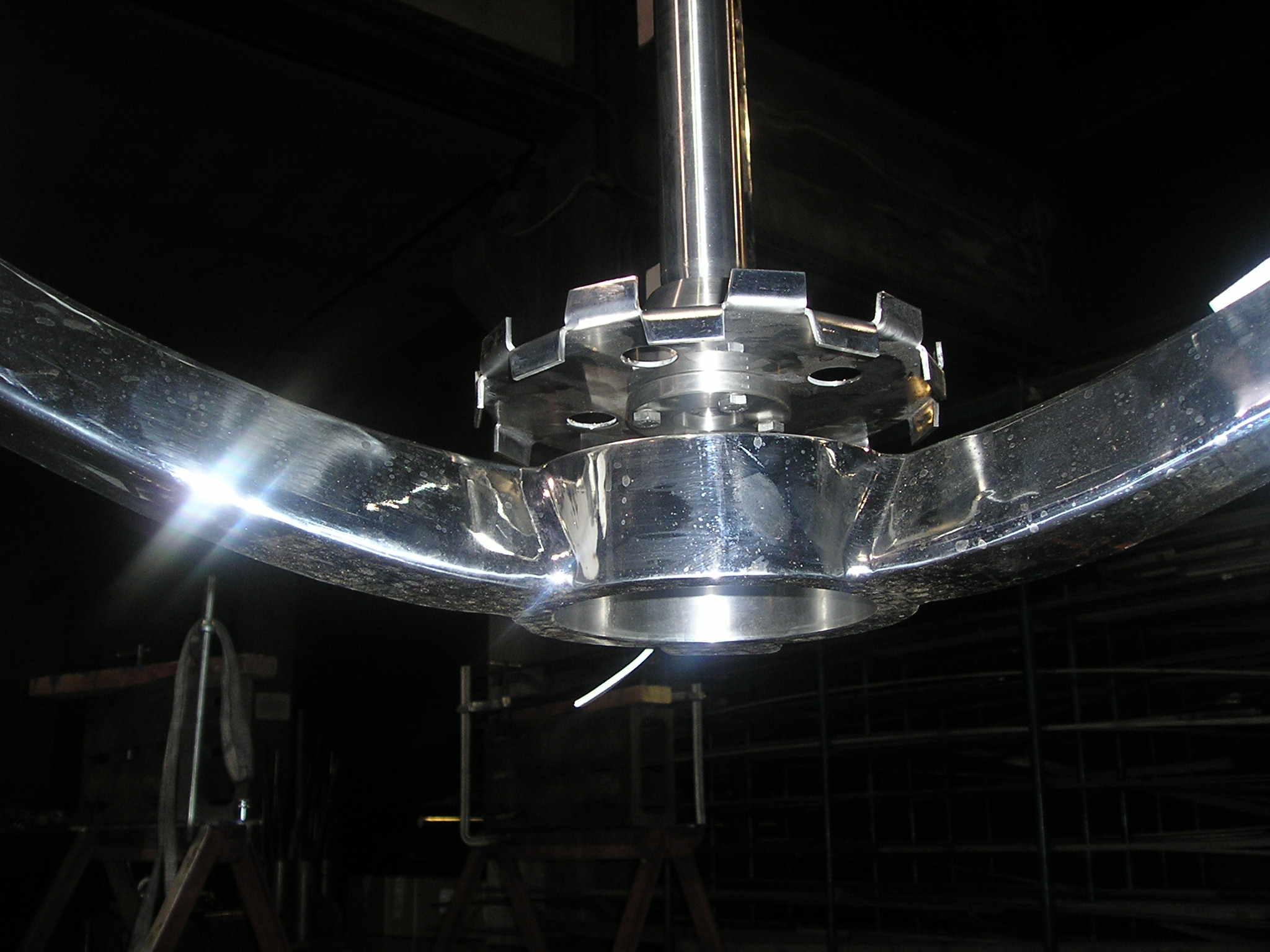

Vessels with a main body under atmospheric pressure to mix fluids, powders and printing plasters in textile sector. These devices are composed by a main body with a flat lid, a central slow anchor mixer and lateral fast mixers with a moving axial vertical device, installed on an upper bridge.

All mixers are provided for working with inverter.

Different volume Mixer made in AISI 316L are (mirror polished) and provided with an electric activating board and mixers control.

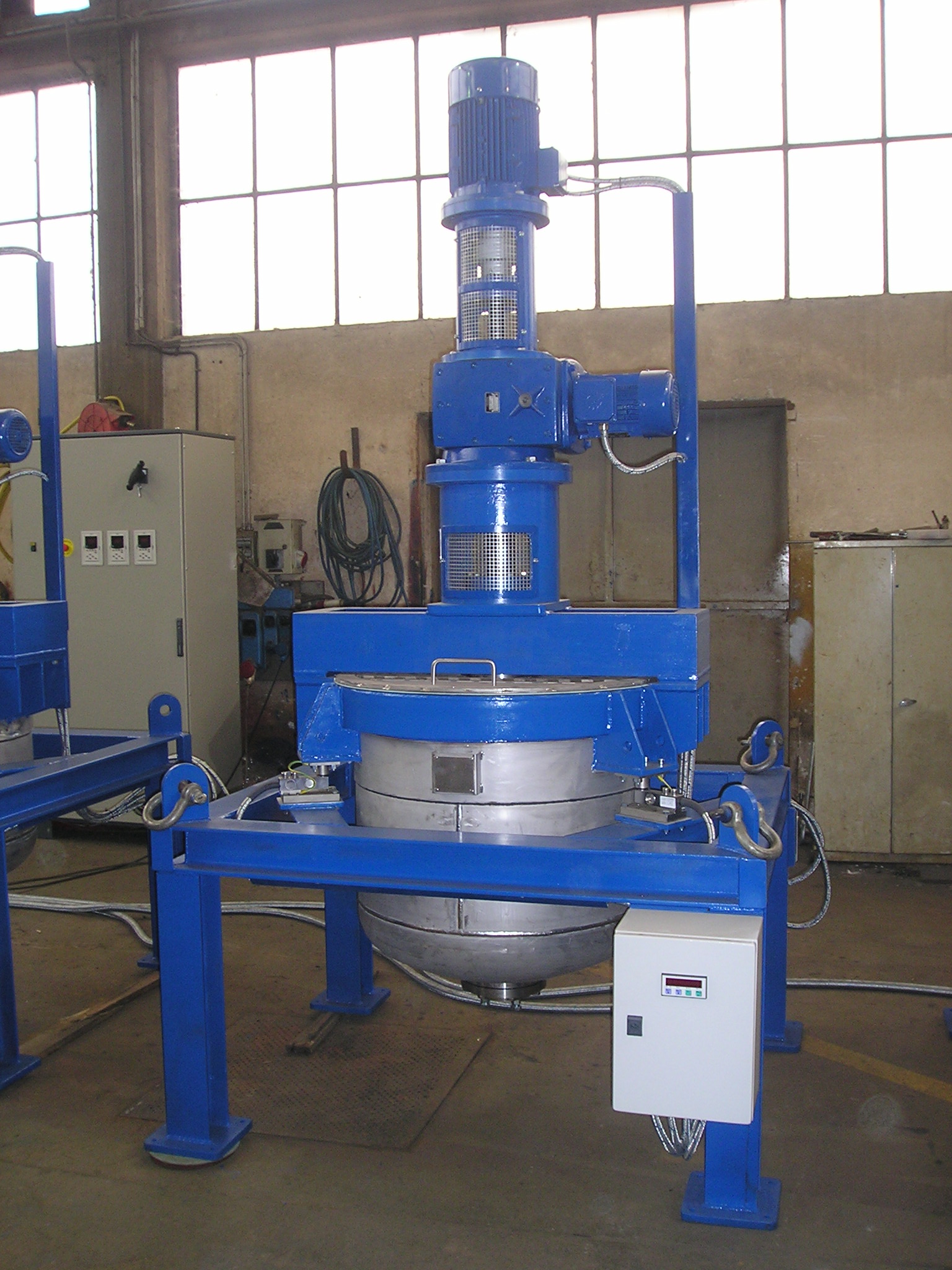

Mixer 300 L and 600 L



Vessel to mix powders and printing fillers, L 300 and L 600, in AISI 316L with slow anchor mixer and one high speed mixer.



Maximum electrical power installed = 9 kW

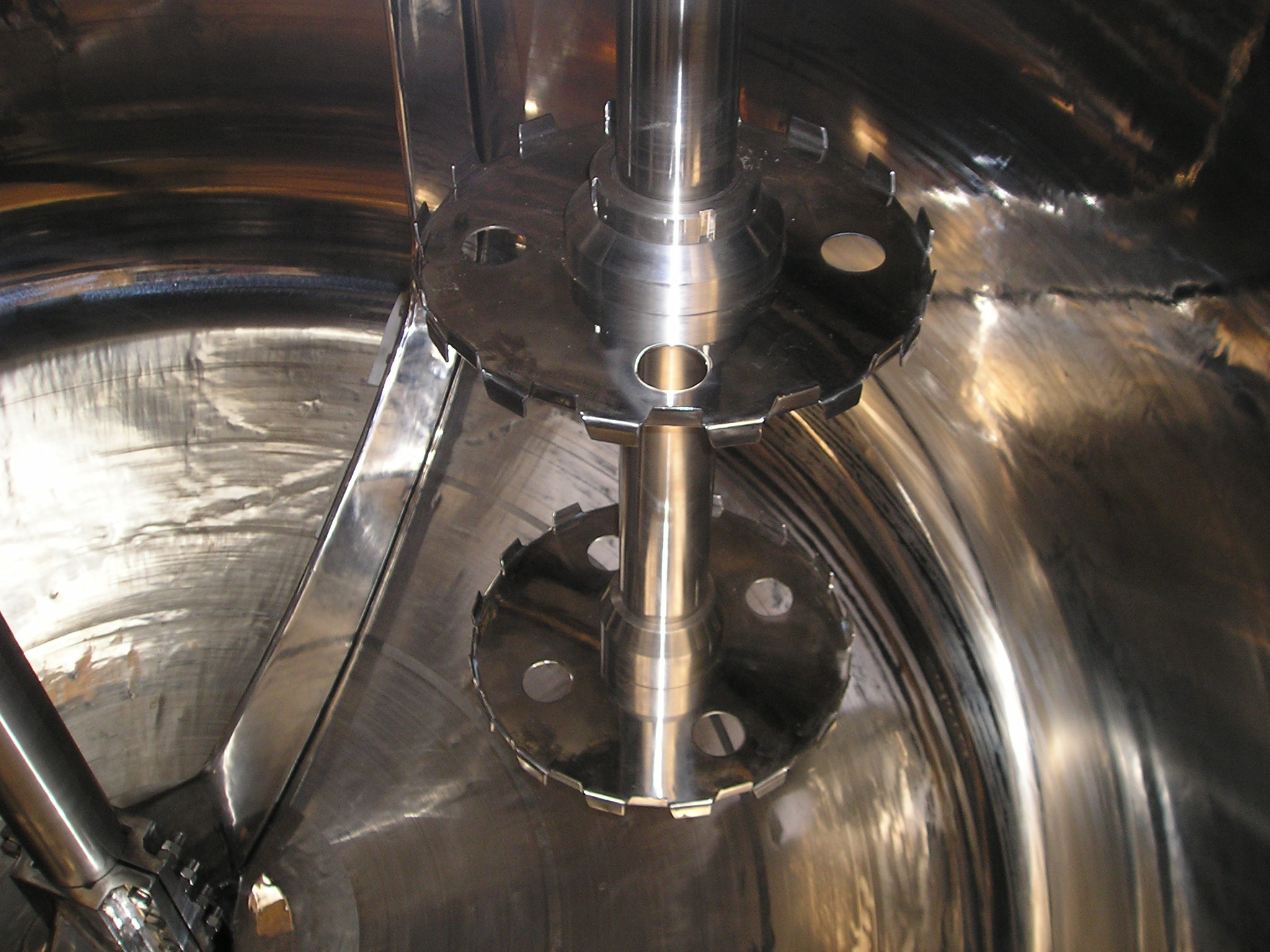

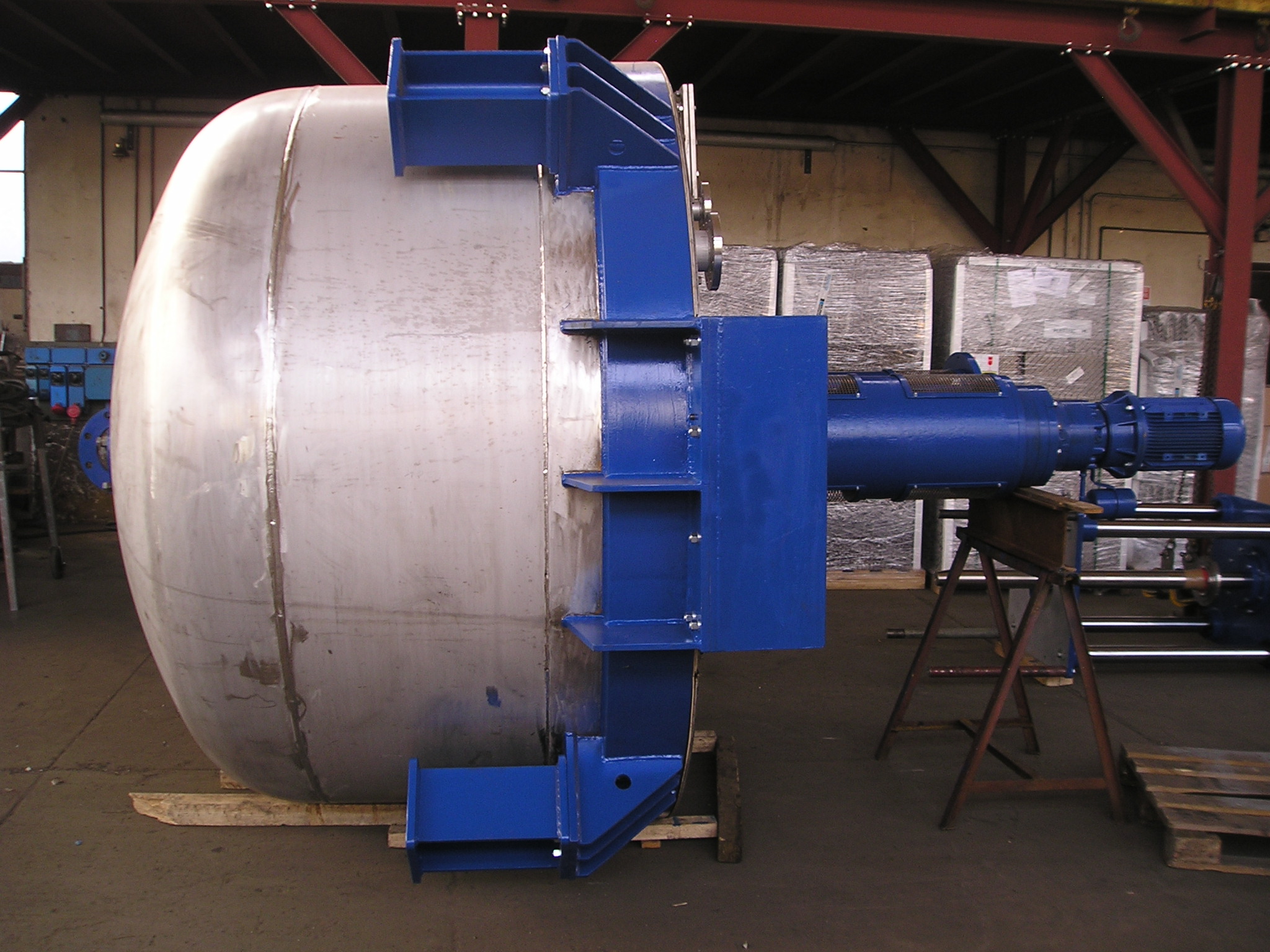

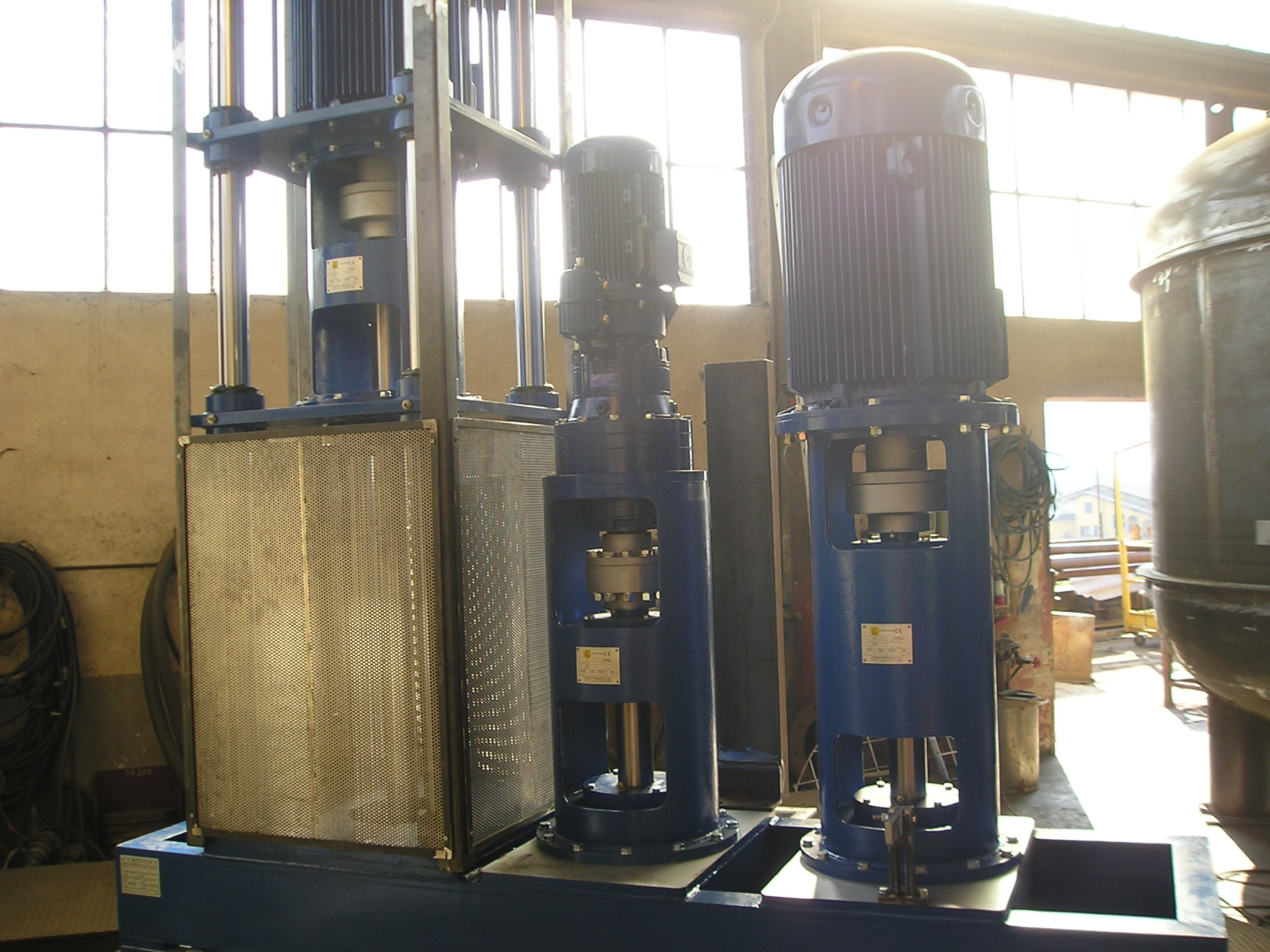

5000 Litres Mixers



Vessel to mix powders and printing fillers, L 5000, in AISI 316 with central anchor mixer with two arms, one high speed mixer on side and another mixer with the same up and down move system inside vessel. Total electrical power installed = 107.5 kW

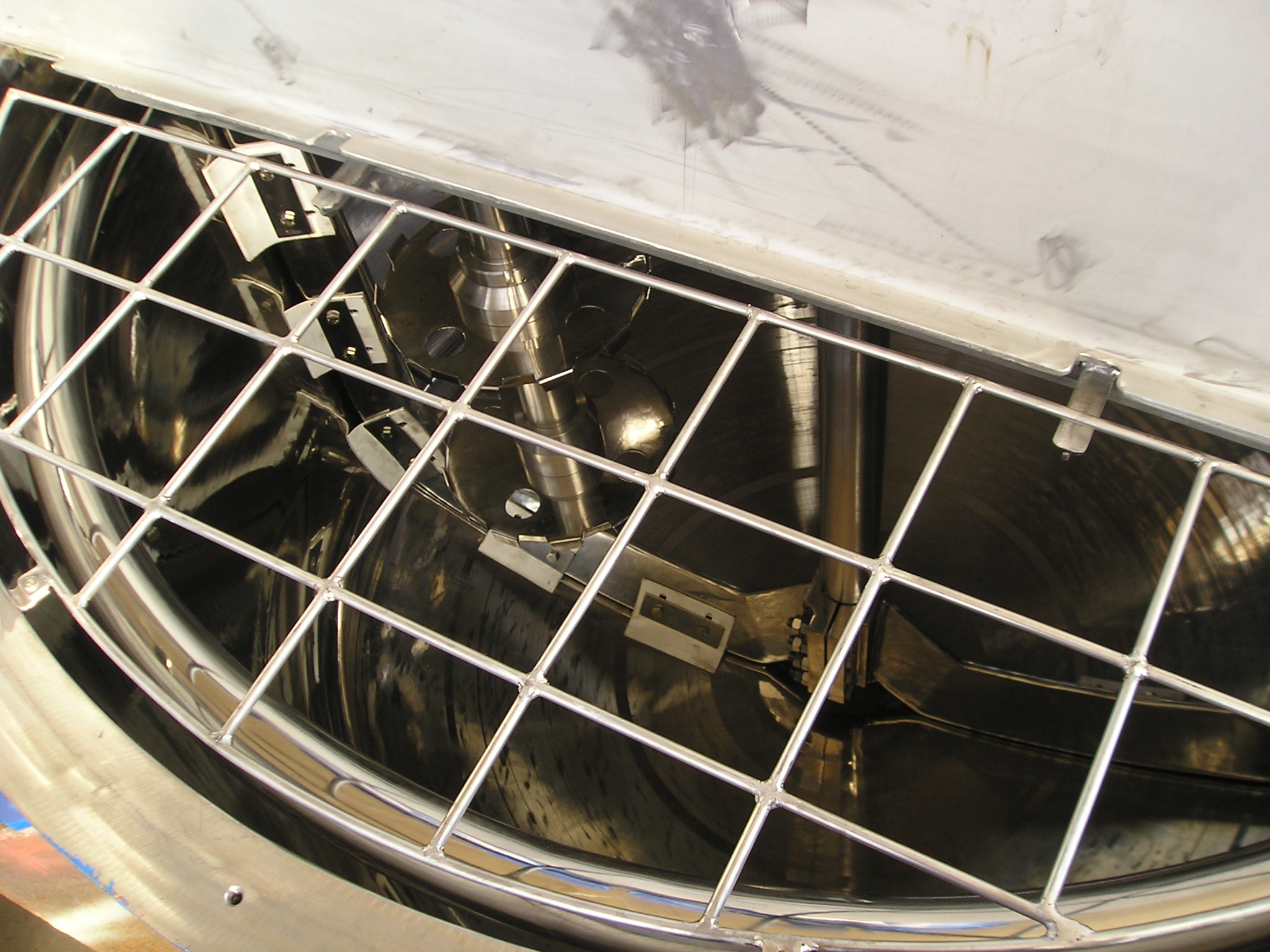

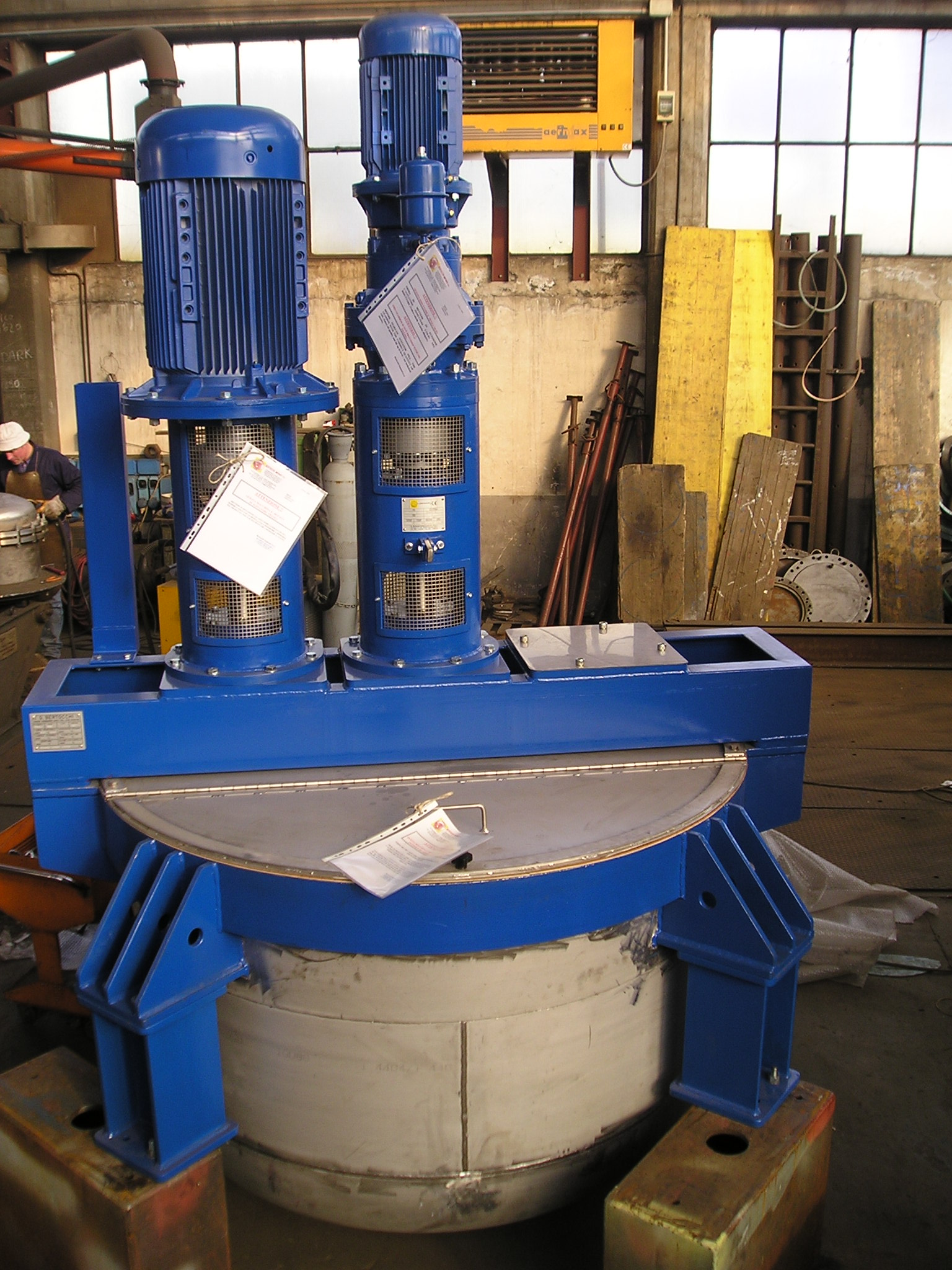

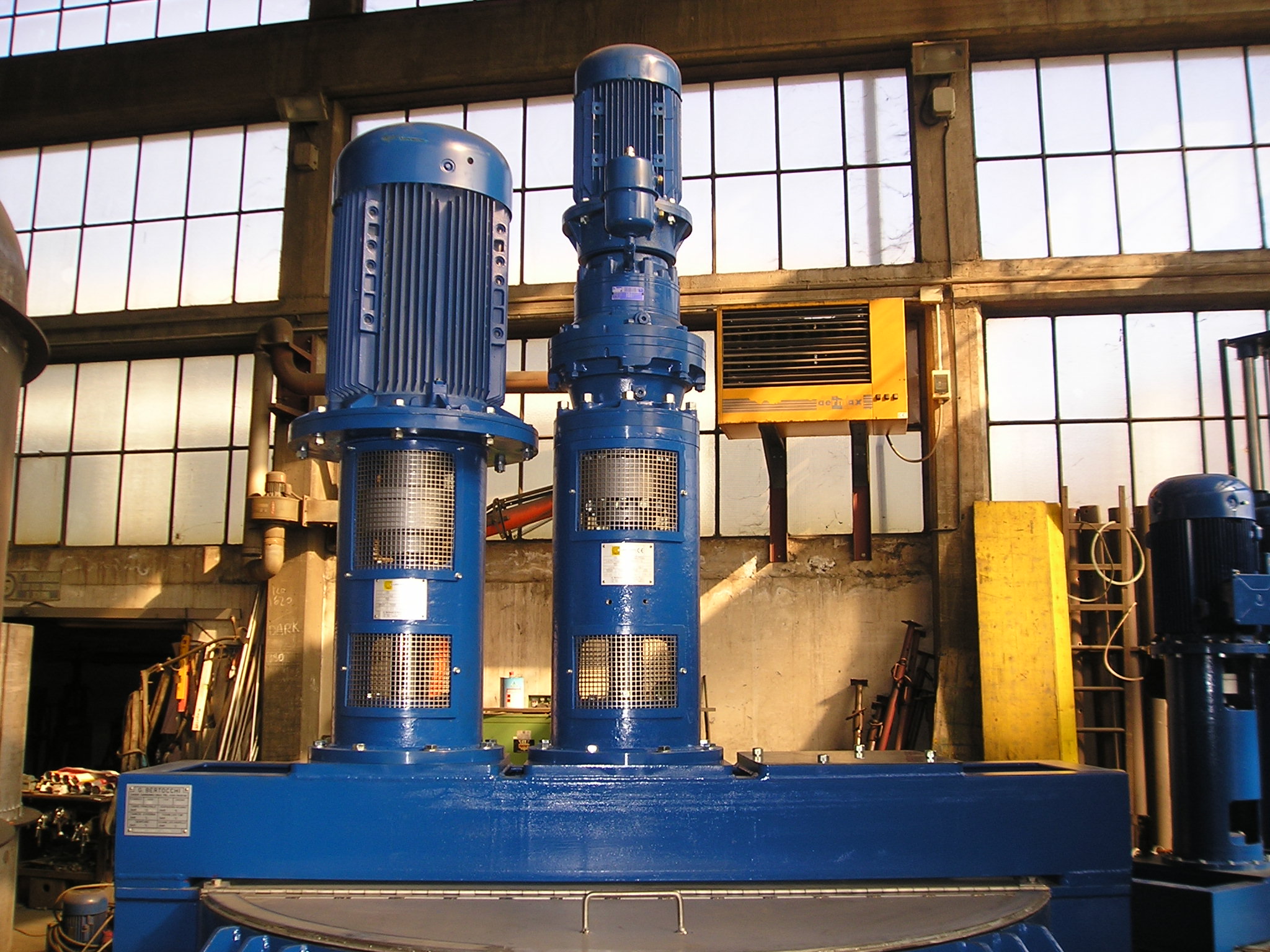

Mixer 2000 Litres



Vessel to mix powders and printing fillers, L 2000, in AISI 316 with central anchor mixer with two arms and one high speed mixer on side. Total electrical power installed = 44.5 kW







Technical sheet Mixer
